evcmc_1b
ICI-EVCMC-1B

ICI-EVCMC-1B

SKU:

ICI-EVCMC-1B

SKU:
Variant
Type
Regular price $1,248.99 CAD
/
  • International Ship
  • Secure payments
  • Low stock - 2 items left
  • Backordered, shipping soon
Shipping calculated at checkout.

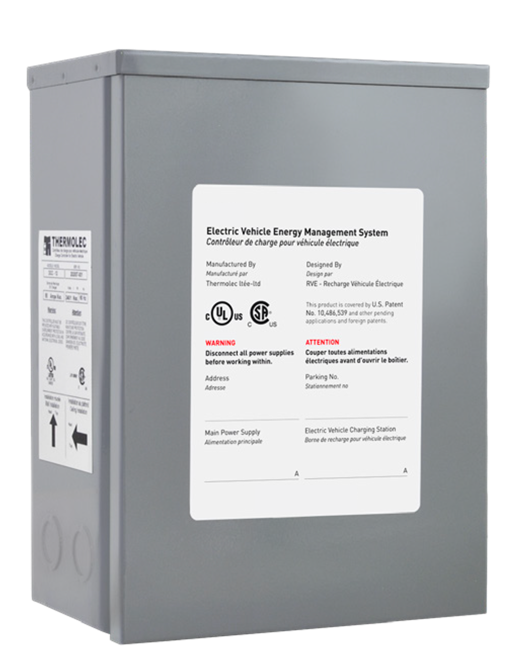

The ICI-EVCMC-1B-40A includes 2 poles 10KAIC 40 A breaker and is rated for home services rated up to 240 Volts 125 Amperes

The ICI-EVCMC-1B-60A includes 2 poles 10KAIC 60 A breaker and is rated for home services rated up to 240 Volts 200 Amperes

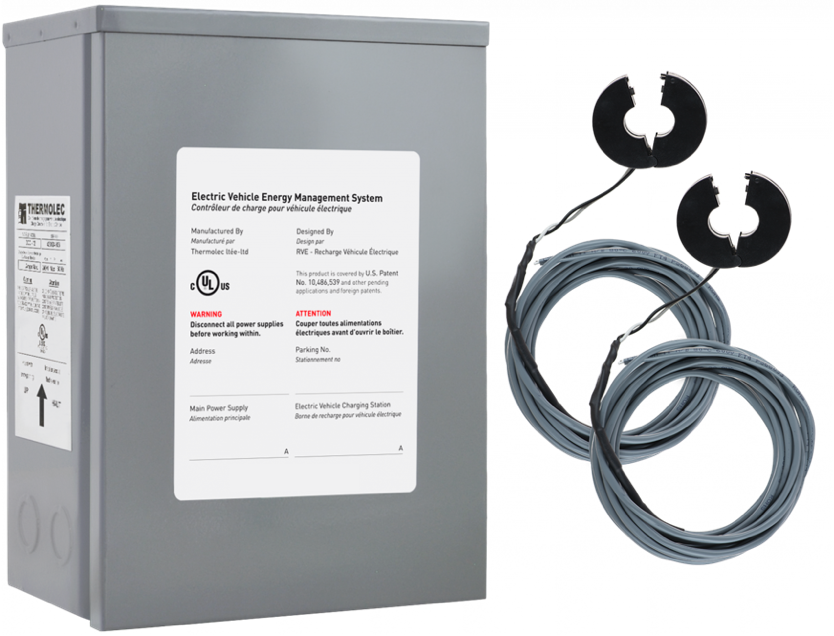

ICI-EVCMC-1B-(40A or 60A)  is an EV Energy Management System specifically designed to allow the connection of an EV charger at home to a panel that is at full capacity without costly service upgrades.

Ideal for installing chargers in multi-residential buildings, such as apartments or condominiums.

The ICI-EVCMC-1B-(40 or 60A) is supplied in a NEMA- 3R standard enclosure and can be installed indoors or outdoors.

How it works:
ICI-EVCMC-1B allows the connection of any EV charger to a fully loaded panel by managing the energy available at any given time.

  1. ICI-EVCMC-1B does a real-time reading of the total power consumption of a home or condo electrical panel.
  2. It detects when the total power consumption of the main circuit breaker exceeds 80% and temporarily de-energizes the charger.
  3. When ICI-EVCMC- 1B-(40 or 60A)  detects that the total power consumption of the electrical panel is less than 80%, for more than 15 minutes, and there is capacity available to energize the EV Charger; it automatically re-energizes the charger.

The ICI-EVCMC- 1B-(40 or 60A)  allows power to be delivered to the EV charger, typically when other house loads are not in use.
